By leveraging application networking, businesses and IT users can effectively communicate and collaborate, leading to increased efficiency and productivity.
The Open Systems Interconnection (OSI) model is a conceptual framework that standardizes the functions of a communication system or network into seven distinct layers. It was developed by the International Organization for Standardization (ISO) in the late 1970s as a way to facilitate interoperability between different networking technologies and protocols.
The OSI model provides a structured approach to understanding and troubleshooting network communication processes.
Layer 3 (network layer), layer 4 (transport layer) and layer 7 (application layer) play key roles in interconnectivity on end-to-end communication, scalability, performance, security and troubleshooting. Understanding application networks fully requires a distinct consideration for these three layers.

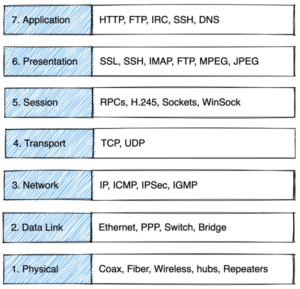

Seven layers of the OSI model
The Open Systems Interconnection (OSI) model is a conceptual framework that standardizes the functions of a communication system or network into seven distinct layers. It was developed by the International Organization for Standardization (ISO) in the late 1970s as a way to facilitate interoperability between different networking technologies and protocols. The OSI model provides a structured approach to understanding and troubleshooting network communication processes.
By leveraging application networking, businesses and IT users can effectively communicate and collaborate, leading to increased efficiency and productivity. The OSI model model standardizes the functions of a a networking into distinct layers, with layer 3 (network layer), layer 4 (transport layer) and layer 7 (application layer) playing key roles in interconnectivity on end-to-end communication, scalability, performance, security and troubleshooting. Understanding application networks fully requires a distinct consideration for these three layers.
Why are layers 3, 4, and 7 key in application networking scalability and security
Here is an overview of the seven layers of the OSI model:
- Layer One (L1) – Physical Layer: This layer represents the physical components of the network, such as cables, connectors, and electrical signals. It is responsible for transmitting raw data bits across the network medium.
- Layer Two (L2) – Data Link Layer: The data link layer establishes and terminates connections between adjacent network nodes and provides error detection and correction. It is divided into two sublayers: the Logical Link Control (LLC) sublayer, which deals with flow control and error handling, and the Media Access Control (MAC) sublayer, which governs access to the network medium.
- Layer Three (L3) – Network Layer: The network layer handles the routing of data packets across multiple networks. It determines the optimal path for data transmission, selects appropriate routing protocols, and assigns network addresses (e.g., IP addresses) to identify source and destination nodes.
- Layer Four (L4) – Transport Layer: The transport layer ensures reliable and efficient delivery of data between end-to-end network connections. It breaks down large data segments into smaller units, manages data flow, and provides error recovery and congestion control. Common transport layer protocols include TCP (Transmission Control Protocol) and UDP (User Datagram Protocol).
- Layer Five (L5) – Session Layer: The session layer establishes, manages, and terminates communication sessions between network applications. It enables synchronization and checkpointing of data exchanges, allowing for the resumption of interrupted sessions.
- Layer Six (L6) – Presentation Layer: The presentation layer is responsible for data formatting, encryption, and compression. It ensures that data from the application layer is transformed into a format that can be understood by the receiving application, handling tasks such as data encryption, compression, and protocol conversion.
- Layer Seven (L7) – Application Layer: The application layer represents the interface between the network and end-user applications. It provides services and protocols that allow applications to interact with the network, including functions such as file transfer, email, web browsing, and remote login.
The OSI model provides a framework for understanding the functions and interactions of different networking layers, enabling developers, network administrators, and troubleshooters to identify and resolve issues more effectively. It serves as a foundation for the design, implementation, and standardization of network protocols and technologies.
Why Layers 3, 4 & 7 for Application Networking
Layer 3 (Network Layer):
Scalability: The network layer is responsible for routing packets across networks. Scalability in this layer ensures efficient handling of network traffic, accommodating growing demands, and enabling the network to scale as the business expands. Effective routing protocols and network addressing schemes contribute to scalability.
Security: Layer 3 security involves implementing measures such as firewalls, access control lists (ACLs), and virtual private networks (VPNs) to protect the network infrastructure and ensure secure communication. By enforcing security policies at the network layer, unauthorized access attempts and potential threats can be mitigated.
Layer 4 (Transport Layer):
Scalability: The transport layer ensures reliable and efficient data delivery between end-to-end connections. Scalability in this layer involves managing transport protocols (e.g., TCP and UDP) effectively to handle increasing traffic demands, optimize data flow, and ensure smooth communication.
Security: Layer 4 security focuses on securing the transport of data. Transport layer security protocols, such as Transport Layer Security (TLS) and Secure Sockets Layer (SSL), provide encryption and data integrity to protect sensitive information during transmission. By implementing secure transport protocols, application networking can safeguard data against eavesdropping, tampering, and unauthorized access.
Layer 7 (Application Layer):
Scalability: The application layer deals with end-user applications and services. Scalability at this layer involves designing applications to handle a high volume of users, traffic, and data. Techniques such as load balancing, horizontal scaling, and caching can be employed to distribute workloads, optimize performance, and accommodate increasing user demands.
Security: Layer 7 security is critical for protecting applications and data from various threats. Robust authentication mechanisms, access controls, and application-level firewalls can be implemented to prevent unauthorized access, protect against application-layer attacks (e.g., SQL injection, cross-site scripting), and ensure the integrity and confidentiality of data.
By focusing on scalability and security at layers 3, 4, and 7, application networking can effectively handle increasing network traffic, adapt to evolving business needs, and provide a secure environment for data transmission and user interactions. This ensures that applications can scale seamlessly while maintaining the necessary security measures to protect against potential vulnerabilities and attacks.
Layers 3, 4, and 7 (network, transport, and application layers) are important and often grouped together for several reasons:
- End-to-End Communication: Layers 3, 4, and 7 together represent the end-to-end communication process in a network. They cover the entire path from the source application on one device to the destination application on another device. By considering these layers together, it becomes easier to understand and analyze the complete communication flow.
- Protocol Stacks: Layers 3, 4, and 7 are part of the protocol stacks commonly used in networking. The TCP/IP protocol stack, for example, includes IP (Layer 3), TCP or UDP (Layer 4), and application layer protocols (Layer 7) such as HTTP, FTP, and SMTP. These layers work together to facilitate communication between applications over networks.
- Scalability and Performance: Layers 3, 4, and 7 play key roles in achieving scalability and optimizing network performance. Layer 3 handles routing and network addressing to efficiently route packets across networks. Layer 4 manages transport protocols for reliable and efficient data delivery. Layer 7 deals with application-specific protocols and optimizations, allowing applications to scale and perform optimally.
- Security Considerations: Layers 3, 4, and 7 are crucial for addressing security concerns in application networking. Layer 3 security focuses on network-level protection, such as firewall filtering and access control. Layer 4 security includes transport layer security protocols like TLS/SSL for securing data in transit. Layer 7 security involves application-level security measures, such as web application firewalls (WAFs) to protect against application-layer attacks.
- Troubleshooting and Performance Analysis: When troubleshooting networking issues or analyzing network performance, considering layers 3, 4, and 7 together provides a comprehensive view of the communication process. It helps in identifying and isolating problems at different levels, whether it’s a routing issue at layer 3, a transport-related problem at layer 4, or an application-specific issue at layer 7.
Overall, layers 3, 4, and 7 are important and often grouped together due to their interconnectedness and their collective impact on end-to-end communication, scalability, performance, security, and troubleshooting in application networking. Understanding and considering these layers together allows for a holistic approach to designing, optimizing, and securing network architectures.
